CLASSIC TRACK DIAGRAMS

NEW YORK CENTRAL

Michigan Division

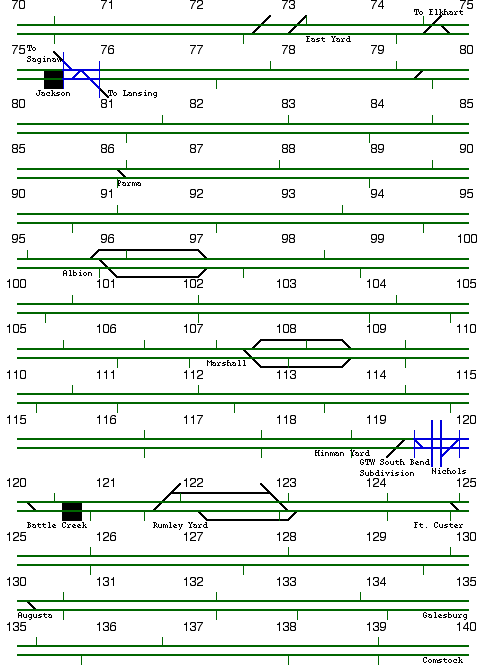

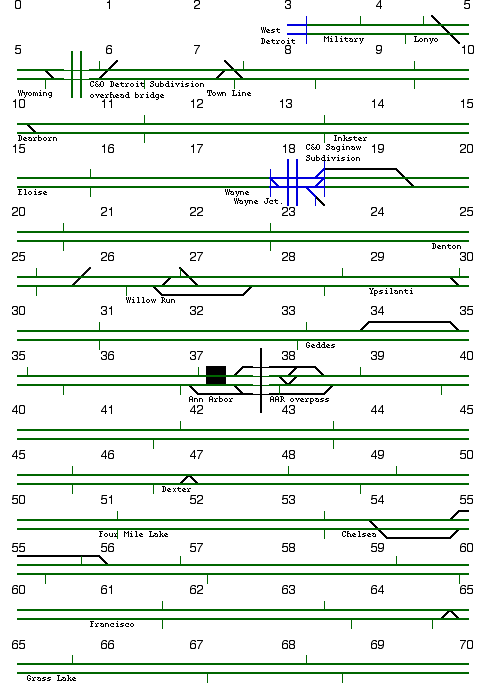

Former Michigan Central main line between Detroit and Kalamazoo. Originally disc type signals, replaced generally around 1909 with semaphore signals, and replaced between 1944 and 1949 with searchlight signals. During the 1980's, the entire segment was single tracked with CTC, with some 2 track segments.
